Range of Gate Valves

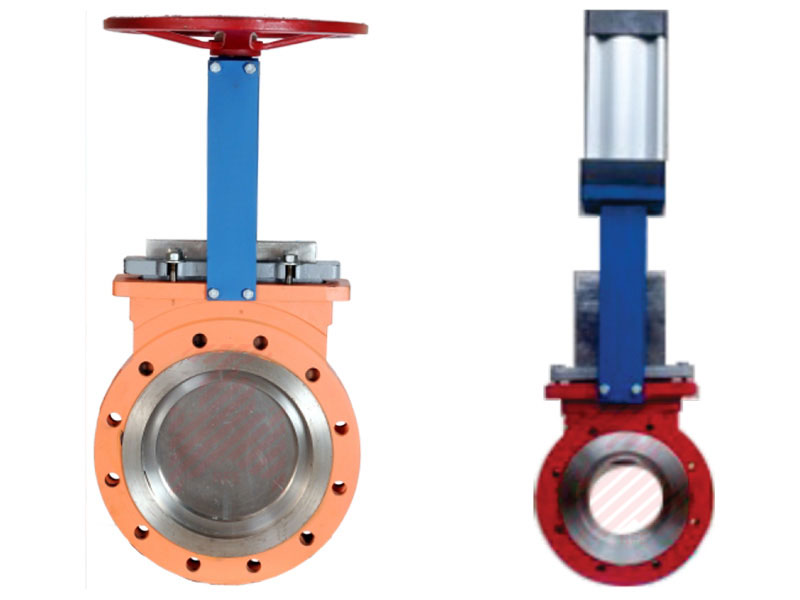

Fabricated Knife Gate Valve

Fabricated Knife Gate Valve

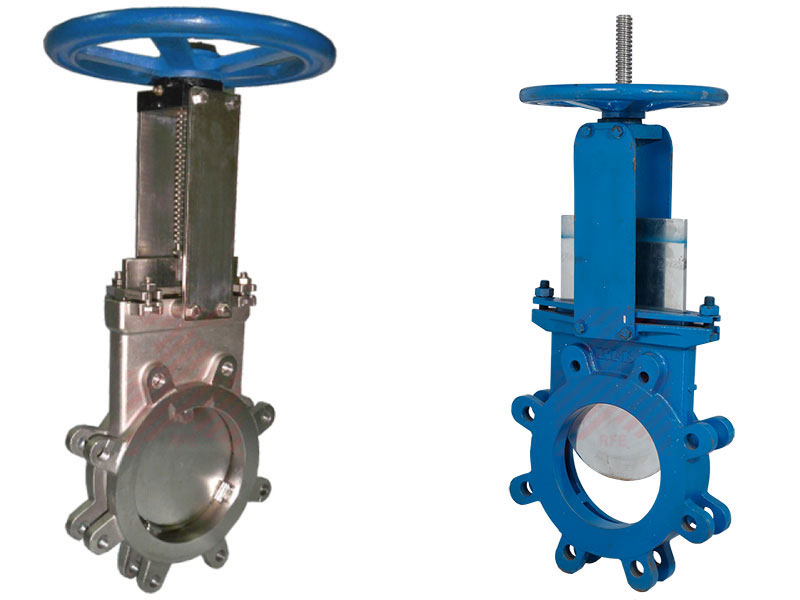

lug Pattern Design Investment Casting

Lug Pattern Design Investment Casting

Knife Gate Valve

Mfg. Standard: -

MSS SP 81

End Connection:-

Wafer Full round body, lug, Semi lug pattern suitable to ANSI B16.5 class 150.

M.0.C :-

Cast Iron, Ductile Iron Cast steel, All grades of Stainless steel & Duplex steel.

Seat :-

Metal to metal & Soft seat, In case of Soft Seat (A) Rubber or (B) PTFE.

Operation :-

Manual, Gear operated, Pneumatic & Electrical actuated.

Pressure rating :-

PN16, 150 CLASS

Size range:-

50mm to 400mm

Flow Direction: -

Uni Directional & Bi Directional.

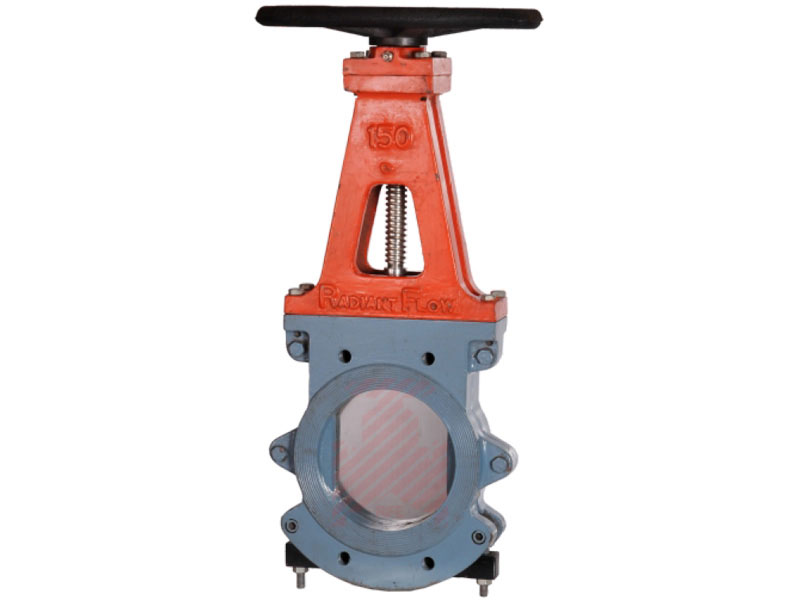

Pulp Valve

Mfg.Standard:-

MSS SP81

End Connection: -

Wafer Drill to BS 10 Table D/E.

Application:-

Handling thick slurries / Paper Pulp.

Flow Direction:-

Bi Directional.

Easy to clean valve online from bottom without dismantling line.

Pulp Valve

Pulp Valve

Gate Valves - # 150 / 300 / 800 / 1500

Gate Valves - # 150 / 300 / 800 / 1500

Gate Valves

Mfg.Standard:-

Complies to API 600

Face IO Face Std: -

ASME B 16.10

End Connection: -

ANSl B 16.5

Testing Std: -

API 598

M.O.C :-

Cast steel, All grades of Stainless steel, Duplex & Super Alloys.

Operation :-

Manual / Manually Gear Operated

Size range:-

15mm. to 300 mm.
