Forged Steel Valve

A105, F304L. & F316L. Forged Steel Valves with Screw End / Socket End/ Butt Weld End Connection

Non Return Valve

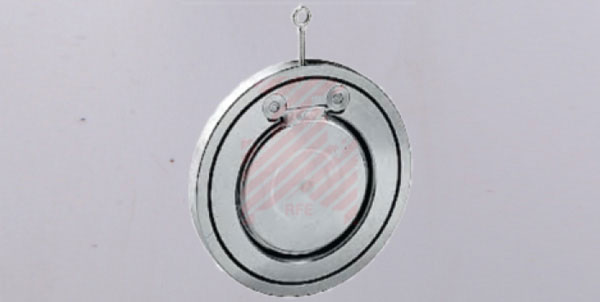

Non Slam Check Valve / Single Disk Check Valve # 150

Mfg.$td.:- DIN EN 558-2.
Testing Std.:- API 598.
Size Range :- DN 15 - 300.

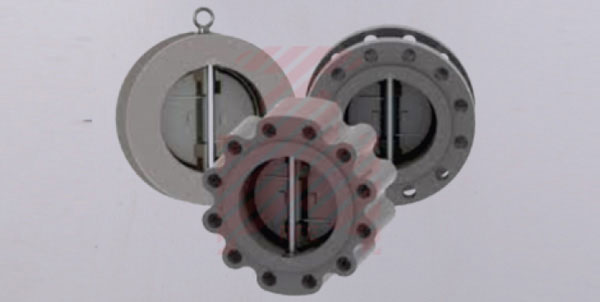

Dual Plate Check Valve
#150, 300, 600 8 900

Mfg. Std.:- API 594.
Testing Std.:- AP1598.
Size Range :- DN 15 – 600

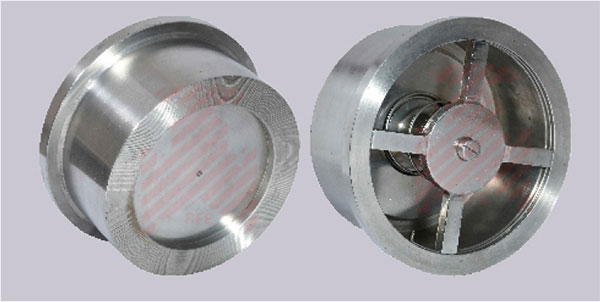

Wafer Type Check Valve
# 150, 300.

Mlg.$td.:- API 6D
Testing Std.:- AP1598.
Size Range:- DN 15 - 600.

Application :

in Delivery Line of Pumps.
in Steam and Condensate Systems.
in Vessels as Foot Valve.
in Filtration and Ion-exchange Process.
in Refrigeration Plants and Air Conditioning Systems.
in Air Line, Water & Effluent Plants, Corrosive Liquids & Gases.

End Connection:-

Wafer, Flange & lugs.

Testing Standard:-

BS 6755 Part1

M.0.C:-

CI, CS, & Stainless steel.

Pressure rating:-

PN10, PN16, 150, 300, 600 & 900 CLASS.
