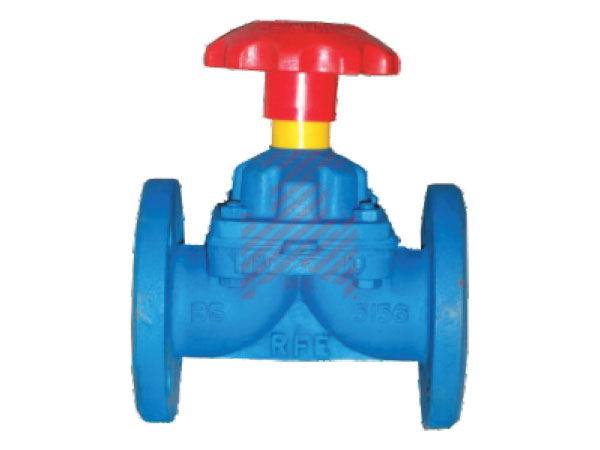

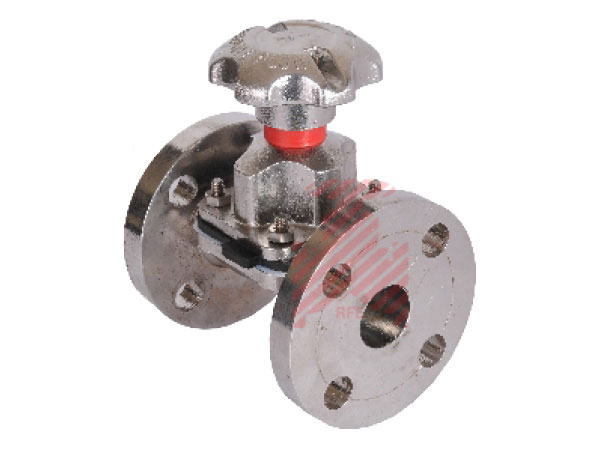

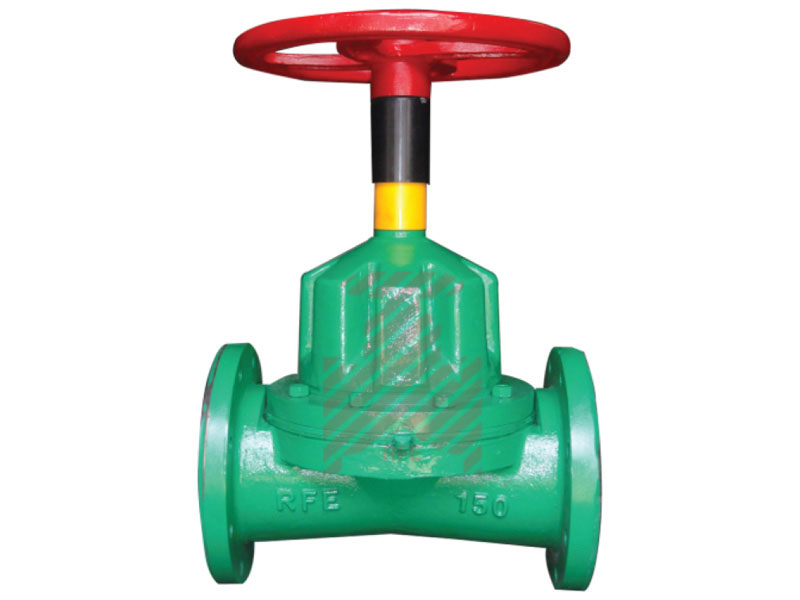

Flange End Diaphram Valve

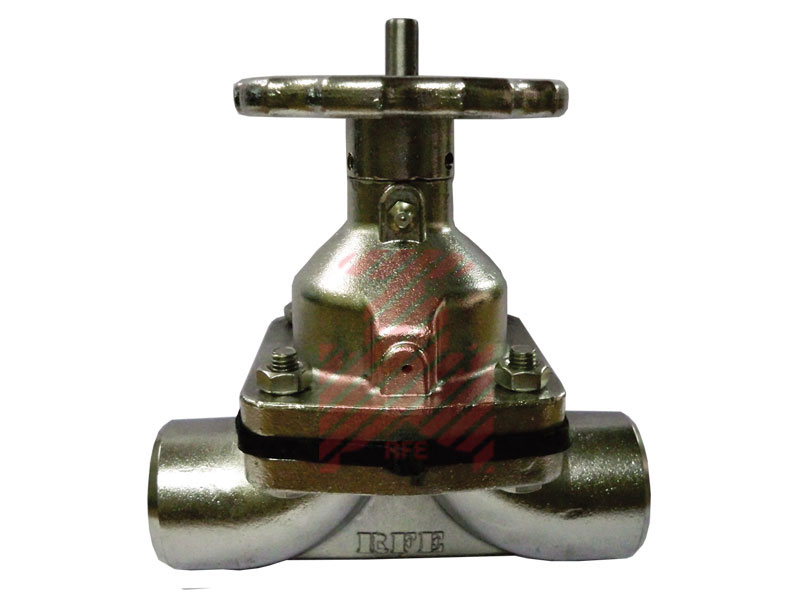

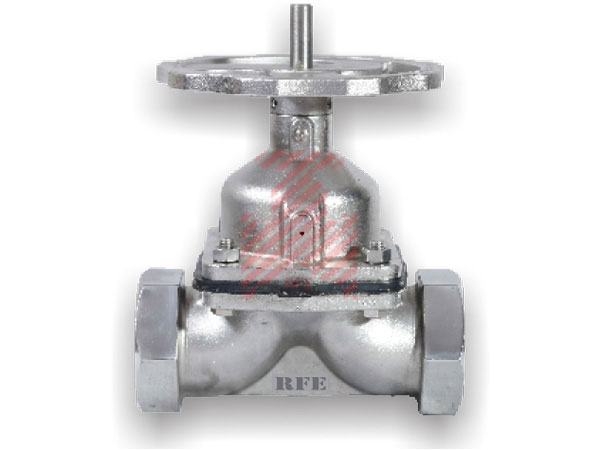

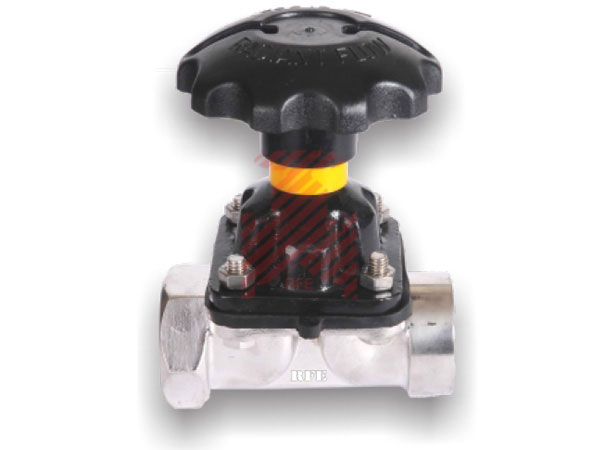

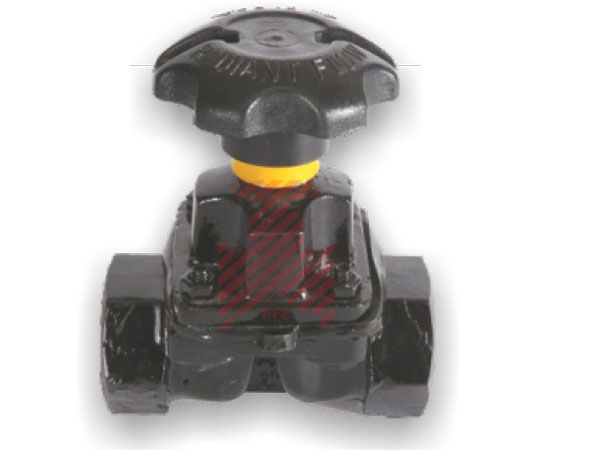

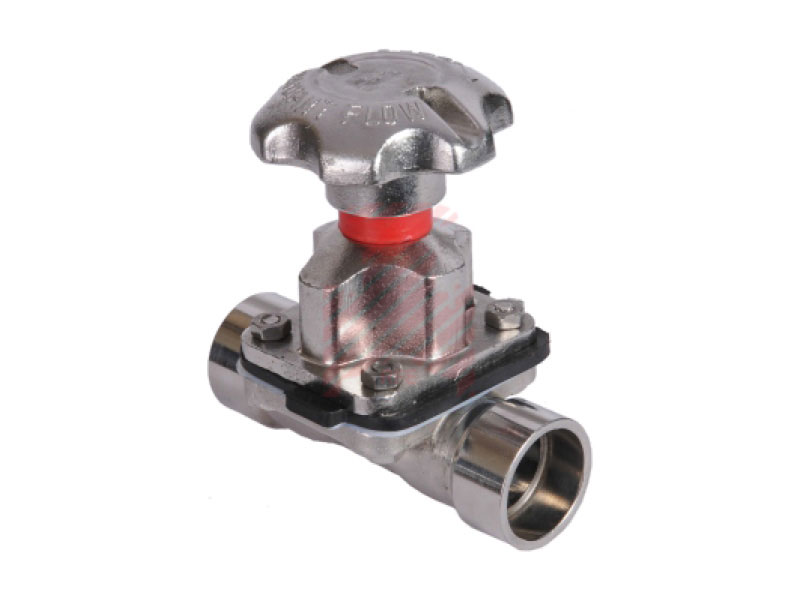

Diaphragm valve

Mfg. Standard:-

BS EN 13397 / BS 5156 / MSS SP -88.

F to F. Standard:-

BS 2080 & DIN 3202.

End Connection:-

Flanged, Butt weld, Socketweld, T/c, Spigot, Screw.

Design :-

Weir A pattern & KB Type - Straight flow type & Aseptic.
Fire Hydrant-Diaphragm type in Weir A pattern.

Testing Standard:-

BS EN 12266-1: 2003

M.0.C :-

Industrial Application: Cast iron, S.G. / Ductile Iron, WCB & Forged stainless steel.

Rubber lining :-

Butyl, Ebonite, EPDM. Natural, Neoprene, NBR & Hypalon.

Teflon Lining :-

FEP : 160°C; PFA : 200°C. PVDF, Halar & ETFE.

Operation :-

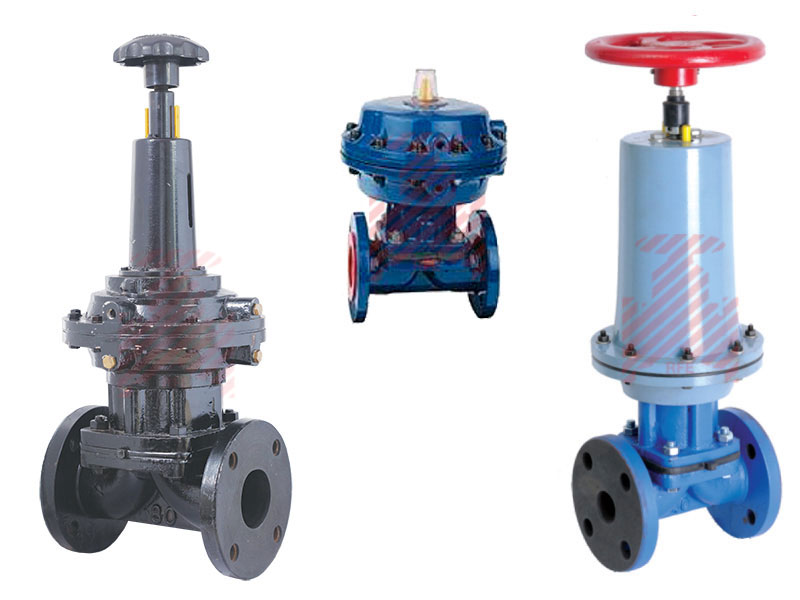

Manual wheel & Pneumatic actuator.

Pressure rating :-

PN10, PN16, 150 CLASS

Size range :-

15mm to 350mm
