Instrumentation Valves

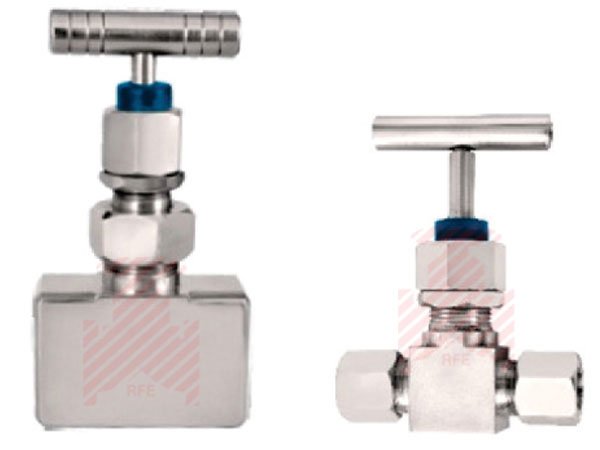

Needle Valves

Application:-

 Isolation &  Throttling

End Connection:-

 NPT/ BSPP/ BSPT

Material:-

 316 SS/ 31 6L SS / 304 / CS / Monel/ Inconel
Hastelloy/ Duplex Steel, NACE M1101 75

Gland Packing:-

 PTFE / Graphite

M.W.Pressure:-

 413 bar/ 6000 PSI at 100°C

High Pressure Design:-

 FPDM, Nittile, Silicon, Neoptene, Butyl, Viton.

Model No.

Design

Size
RFE 11300 Standard 1/4” to 1"
RFE 11310 Angular End  1/4" to 1/2"
RFE 11320 High Pressure 1/4't01”

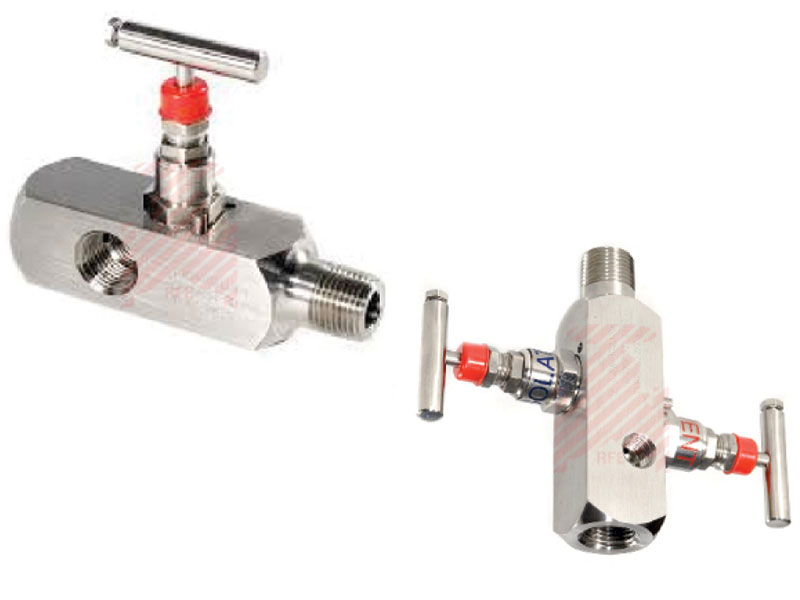

Gauge Valves

Application:-

 Isolation, Calibration or drain perpose

End Connection:-

1/2” NPT/ 61/2/ 1/2” BSPT

Material:-

 316 SS/316LSS/304/CS/Monel/ Inconel
Hastelloy/ Duplex Steel, NACE M80175

Gland Packing:-

 PTFE / Graphite

M.W.Pressute:-

 413 bar/ 6000 PSI at 100°C

High Pressure Design:-

 FPDM, Nitrile, Silicon, Neoprene, Butyl, Viton.

Model No.

Design

Size
RFE 11330 Bleed   1/4' to 1/2'
RFE 11340 Vent   1/4” to 1/2"
RFE 11350 Multiport   1/4" to 1"

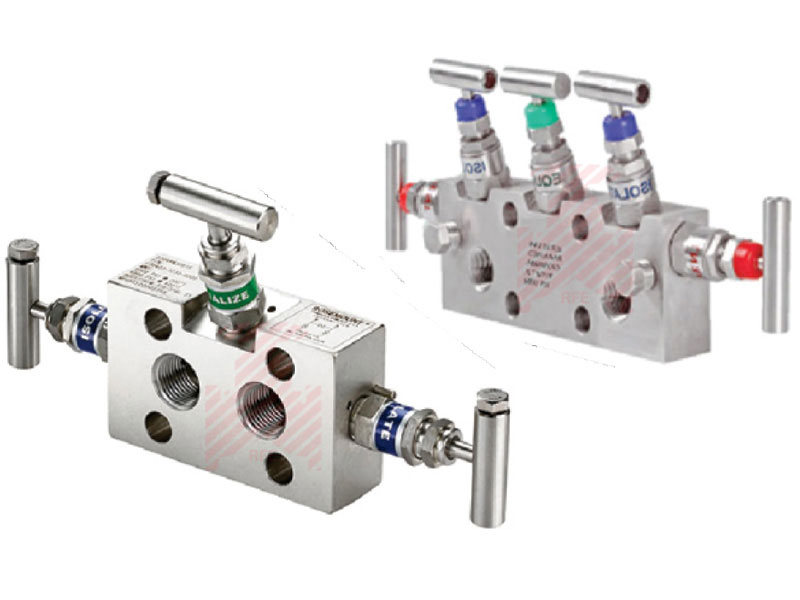

Manifold Valves

Applitation:-

 Isolation, Calibration or drain purpose

Std.

ProoessConnedion:- 1/2” NPT F

Material:-

 316 SS/ 3161 SS/ 304 / CS/Monel / Inconel Hastelloy/ Duplex Steel, NACE MR0175

Gland Packing:-

 PTFE / Graphite

M.W.Pressure:-

 413 bat/ 6000 PSI at 100° C Valves for 10000 PSI working Presure are also available

Manifold:-

 2,3,4,5 valve manilold Drain:- 1/4” NPTF (Supplied with 1/4” blind plug)

Model No.

Design

Size
RFE 11330 Bleed 1/4' to 1/2'
RFE 11340 Vent 1/4" to 1/2"
RFE 11350 Multiport 1/4' to 1"

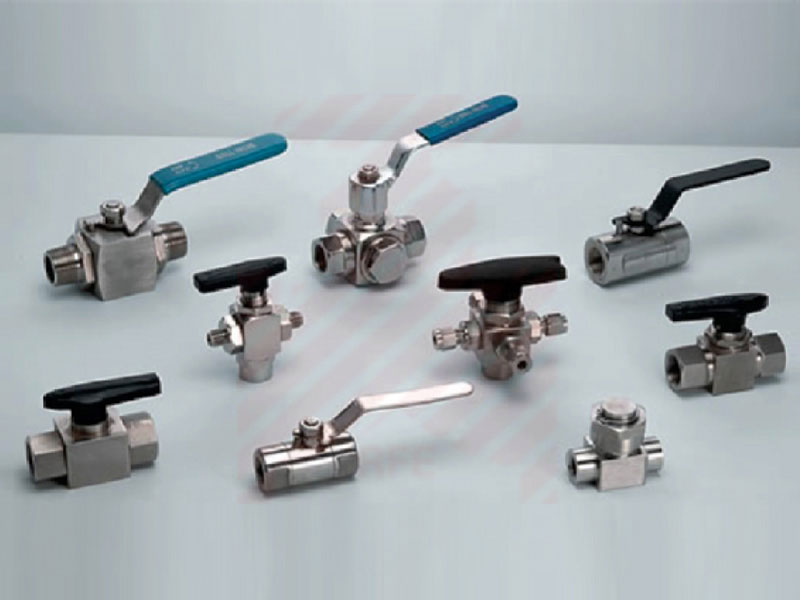

Instrumentation Ball Valves

Applitation:-

 Isolation

Site:-

 1/4” to 1”

End Connection:-

 Screwed (NPT/ BSFP/ BSPT), SocketWeld

Materlal:-

 316 SS/ 3161 SS/ 304 SS/CS (Special material available on request.)

Model No.

Design

Maximum Working Presure
RFE 11380 Low Presure   2000 PSI at 100° C
RFE 11390 High Presure 6000 PSI at 100°C
